Cooler Master V SFX 650W Gold Fully Modular Power Supply

  • $179.00
    Unit price per
Tax included. Shipping calculated at checkout.


Cooler Master V 650W SFX Power Supply, 80+ Gold, Fully Modular, 92mm HDB Fan, 2x EPS, 4x PCIE(6+2), 12x SATA, 4x Molex

V650 SFX GOLD

SEMI-FANLESS FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY

80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Semi-fanless Mode
Full-modular Cabling
10 Year Warranty

Make it Mini

MAKE IT MINI

The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance at 650 watts. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.

SFX FORM FACTOR

The V SFX Gold delivers the high quality performance you've come to expect from the V series in a SFX mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Cooler Master is proud to be able to provide a reliable, high quality PSU that's compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn't. Make it mini. Make It Yours.

80 Plus Gold

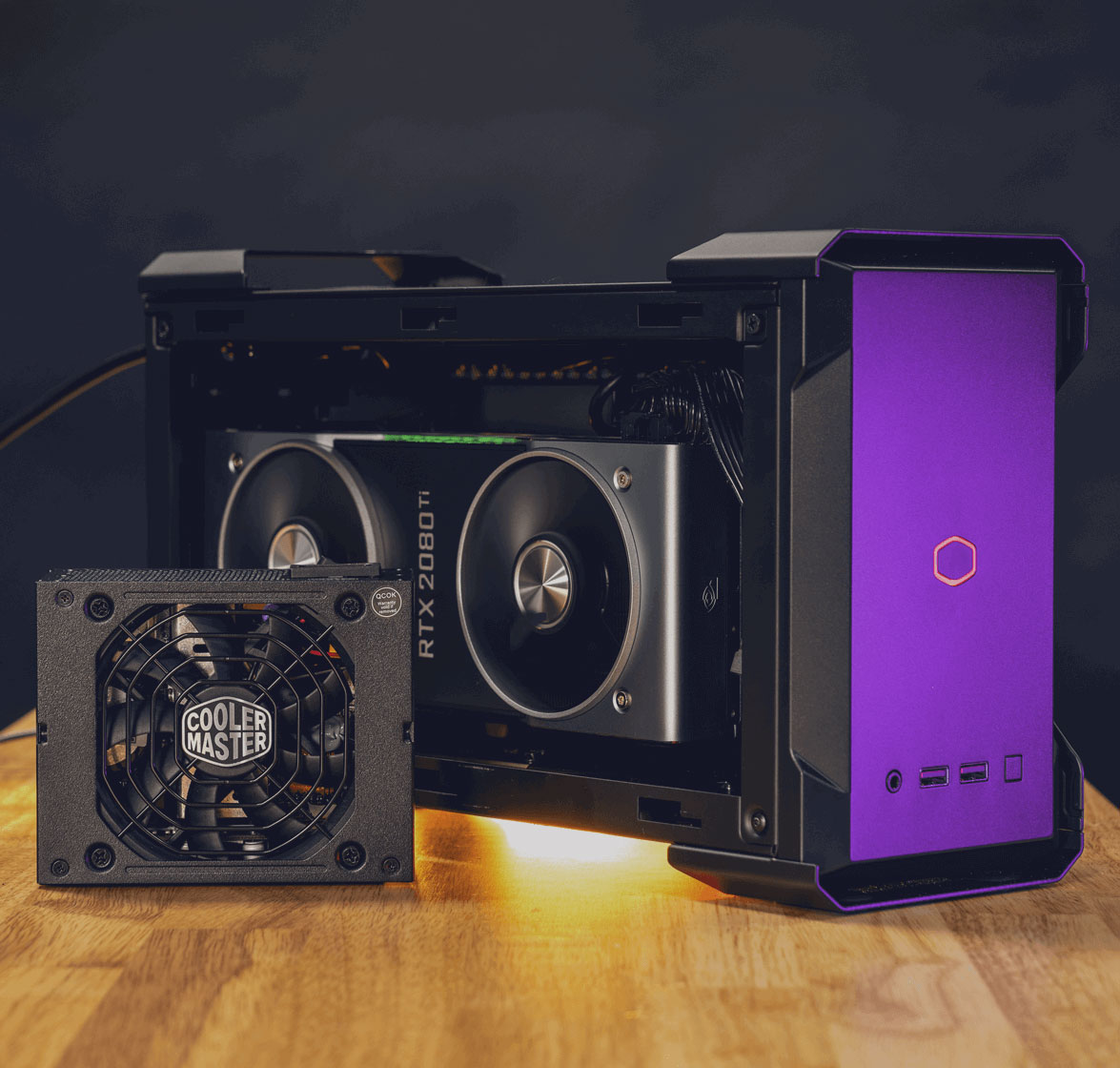

SFX to ATX Bracket

80 PLUS GOLD EFFICIENCY

The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

Efficiency Graph

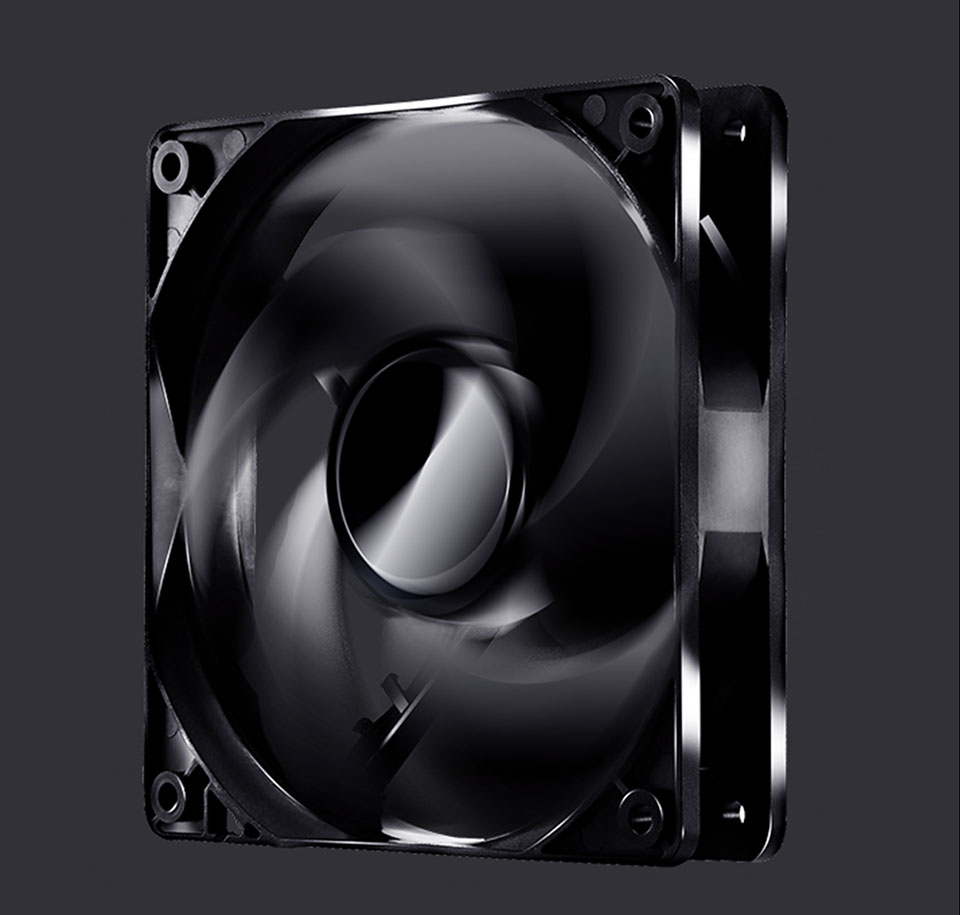

SEMI-FANLESS MODE

Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it's extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum. It's also 15% semi-fanless for added noise reduction.

Semi Fanless
Full Modular

FULL-MODULAR CABLING

A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That's why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables. Connect only the ones you need for your system to preserve as much room as possible, leading to both improved airflow and better presentation.

10 YEAR WARRANTY

The V SFX Gold series offers top quality power supply units that can and will deliver professional grade performance at normal use wattage levels. Just because the size of the PSU is reduced doesn't mean the quality should be. And with this unit, you can rest assured that it hasn't. You can trust this PSU for all your computing needs, whether it's casual work or hefty, continuous gaming sessions. Just in case you aren’t sure, all V SFX Gold series models come with a 10 year warranty.

Warranty
V SFX GOLD

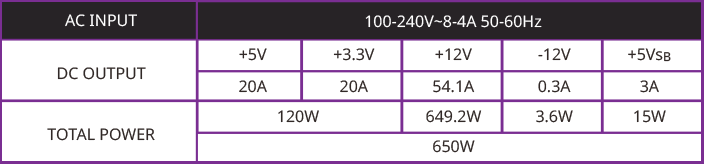

OUTPUT RATING

Output Rating

SPECIFICATIONS

MODEL NUMBER

MPY-6501-SFHAGV-AU

ATX VERSION

SFX 12V Ver. 3.42

PFC

Active PFC

INPUT VOLTAGE

90-264V

INPUT CURRENT

8-4A

INPUT FREQUENCY

47-63Hz

DIMENSIONS (L X W X H)

100 x 125 x 63.5 mm

FAN SIZE

92mm

FAN BEARING

FDB

EFFICIENCY

90% @ Typical Load

80 PLUS RATING

80 PLUS Gold

ERP 2014 LOT 3

Yes

OPERATING TEMPERATURE

0-50°C

POWER GOOD SIGNAL

100 - 500 ms

HOLD UP TIME

16ms

MTBF

>100,000 Hours

PROTECTIONS

OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection

REGULATORY

TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

ATX 24-PIN CONNECTORS

1

EPS 4+4 PIN CONNECTORS

1

EPS 8 PIN CONNECTOR

1

SATA CONNECTORS

8

PERIPHERAL 4-PIN CONNECTORS

4

PCI-E 6+2 PIN CONNECTORS

4

SERIES

V Gold Series, V SFX Gold Series

80 PLUS

Gold

MODULAR

Full Modular
